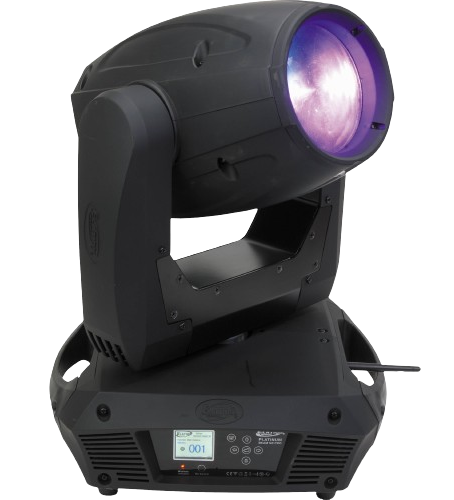

Elation Platinum Beam 5R

The Platinum Beam 5R is a compact, light weight, high power ACL beam aerial effect moving head fixture. Featuring the MSD Platinum 5R lamp from Philips a 189W lamp offering output comparable to 575W fixtures and with the specialized optical design in the Platinum Beam 5R creating a concentrated beam of light “ACL / Searchlight” type effect.

  • Light Source: Philips MSD 189W Platinum 5R Lamp

  • Beam Angle: 2.5°

  • 540° Pan and 265° Tilt

  • Colors: 12 + white

  • Gobos: 8 Rotating Replaceable Rotating / Indexing Gobos

  • Prism: 8 Facet Round

  • Frost Filter

  • 3 and 5 Pin XLR In and Out

  • PowerCON In

  • Power Consumption: 305w 120-208v

  • Default mode: 16ch

  • Dimensions: 14.1” x 13.2” x 18.5” (L x H x D)

  • Weight: 15.5 kg / 34.2 lbs.

  • Ships 3 to a case
